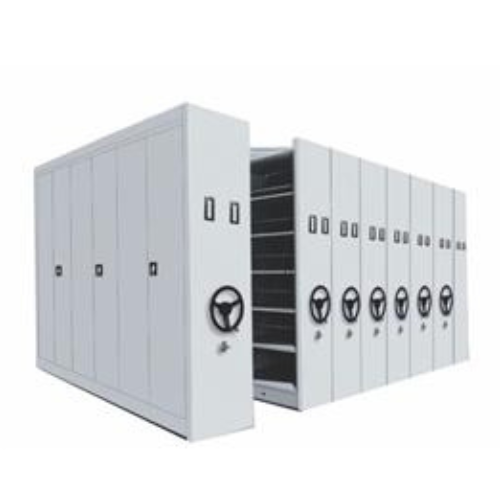

Mobile Shelving-Compactors 720

Description Type Single Faced, Double Faced Brand Sogno Design Type Standard Size 2745*457*1980 mm Shelves 5 SHELVES Lock Type Push button locks EACH FACE OF THE UNIT WILL HAVE 5 NOS STORAGE LEVEL EACH STORAGE LEVEL LOADING CAPACITY WILL BE 65 KG THE ALL STORAGEE LEVEL IN STORAGE SYSTEMS WILL BE ADJUSTABLE TYPE ARRANGMENT EACH UNIT OF THE SYSTEMS WILL HAVE MECH. TYPE DRIVE ARRANGMENT THE EACH COMPONENTS OF THE STORAGE ITEMS WILL BE TREATED WITH RUST PROOF TREATMENT & AFTER THE TREATMENT COMPLETE UNIT WILL BE POWDER COATED WITH 50 MICRON FOR LONG LIFE & Better Finish TECHNICAL SPECIFICATION OF THE MATERIAL Item Name                                              SWG                 Quality Of Sheet Vertical Panel                                          20 G                  CRCA TATA PRIME Quality Sheet Horizontal Panel (Shelves )                    20 G                  CRCA TATA PRIME Quality Sheet Center Partition                                       22 G                  CRCA TATA PRIME Quality Sheet Based frame                                           10 G                  Angle Channel 40 x 40 x 3 1.5mm Indexing Arrangement                                                     Acrylic Indexex 250x150x2.5mm Thick STORAGE ITEM   – BOX FILES Double Face @24500 each single Face   @22500 each GST 18% extra
