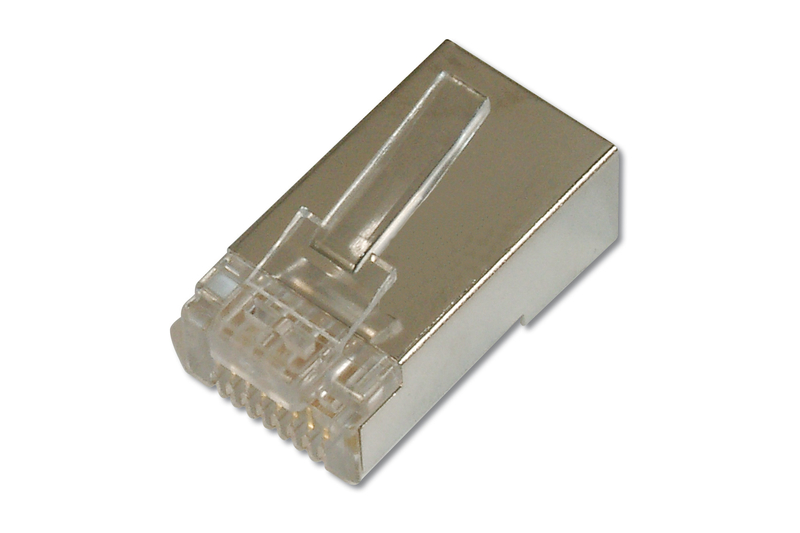

Cat6 skermað tengi - AK-219603

Lýsing CAT 6 Modular Plug, 8P8C, shielded for Round Cable, two-parts plug Easy assembly by modular crimping tool DN-94004 Technical Details Layout performance: CAT 6, 1GBase-T Area of application: Patch cable assembly Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: UL certified Technical properties: Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Material connector body: Polycarbonat, clear Connector contact: Phosphor bronze, brass 0.6 μ gold-plated Flammability: UL 94V-2 Physical properties: Insertion force: ≤ 30 N Diameter Cu-Conductor: AWG (27/7 … 24/7) Operating temperature: -40 °C to 80 °C Current carrying capacity: 1A -1.5A at 50 °C Colour: Transparent Model: Plug Connection type: Crimp Screened: yes Category: 6 Suitable for round cable: yes Suitable for flat cable: no Suitable for litz wire conductor: yes Suitable for solid core: no Type of connector: RJ45 8(8) AWG-range: 24 … 27 Special tool necessary: yes Datasheet English
