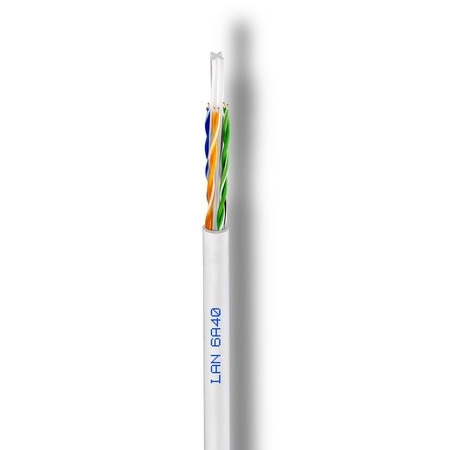

Cat 6A U-UTP netkapall 200 m. Hvítur – LAN6A40

Lýsing Cat6A U-UTP kapall. Lengd 200m á plastkefli. Class CPR acc. to UE 305/2011 (DoP) Eca Availability on demand Application Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IPTV; HbbTV 2.0.n IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T IEEE 802.5: ISDN; TPDDI; ATM; CATV; Broadband Video; PoE/PoE Indoor Installation acc. to Standard ISO/IEC 11801 Class Ea EN 50288-11-1 EN50173 EIA-TIA 568 CEI-UNEL 36762 Reaction to Fire EN50575 CONSTRUCTION DATA Inner Conductor Ø mm 0,55 material Cu Insulation Ø mm 1,05 material PE Outer Sheath Ø mm 6,8 material PVC PHYSICAL DATA Copper Content kg/km 17,3 Cable Weight kg/km 45,4 Min bending radius x 1/n mm 35/70 Max.Tensile Strength N 100 ELECTRICAL DATA Impedance Ohm 100±5@100 MHz Capacitance of Twisted Pair (@800Hz) pF/m 48 Velocity Ratio % 67 Attenuation (at 20°C ) at 1 MHz dB/100m 1,8 at 4 MHz dB/100m 3,6 at 10 MHz dB/100m 5,4 at 20 MHz dB/100m 7,7 at 31,2 MHz dB/100m 9,6 at 62,5 MHz dB/100m 13,7 at 100 MHz dB/100m 17,4 at 155,5 MHz dB/100m 21,9 at 250 MHz dB/100m 28,1 at 500 MHz dB/100m 40,0 NEXT at 1 MHz dB 90,0 at 4 MHz dB 85,0 at 10 MHz dB 80,0 at 20 MHz dB 70,0 at 31,2 MHz dB 65,0 at 62,5 MHz dB 60,0 at 100 MHz dB 60,0 at 155,5 MHz dB 55,0 at 250 MHz dB 50,0 at 500 MHz dB 42,0 Coupling Attenuation dB > 45 DC Conductor Resistance Ohm/km 82,0 Loop resistance Ohm/km 164,0 Sheath Insulation Voltage (DC, 1 min) kV 1,0
