Netkapall 1 m. Cat6A S-FTP LSZH Blár – 93677

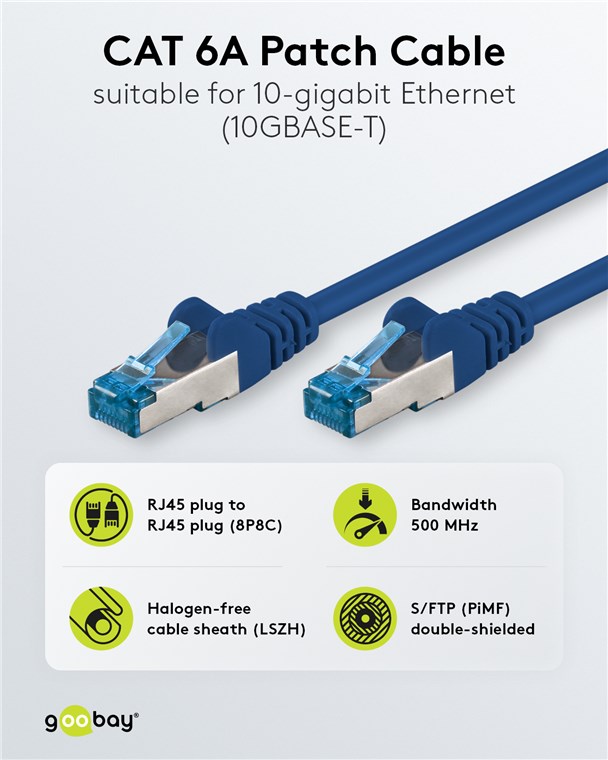

Lýsing CAT 6A Patch Cable, S/FTP (PiMF), blue copper conductor (CU), halogen-free cable sheath (LSZH) Double-shielded LAN cable with 2x RJ45 plugs for connecting network components CAT 6A internet cable suitable for 10 Gigabit Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T, 10/100/1000/10000 Mbit/s S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath High-quality copper conductor (CU) and 3µ gold-plated contacts guarantee an excellent, powerful network connection. Bend protection and a sturdy jacket effectively protect the Ethernet cable from breakage. Latch protection on RJ45 plugs prevents the latch from snagging or breaking off, helping to provide a reliable internet connection. Network cable is CAT 6A tested (incl. test report) and suitable for Power over Ethernet (PoE,PoE ). Connections Contacting EIA/TIA-568 B Connection, contact material gold-plated 3µm Connection, type RJ45 male (8P8C) Latch protection both sides Connection, shielding yes Connection 2, type RJ45 male (8P8C) Kink protection both sides Cable Specification CAT 6A Shielding class S/FTP (PiMF) Cable type round cable Cable sheath diameter (approx.) 5.9 mm Inner conductor material CU (copper) Cable length 1 m Material cable sheath LSZH AWG 27/7 (stranded) Number of shieldings 2 x Type 1, shielding foil (alu) PiMF Type 2, shielding braid (alu) overall shield bending radius > 59 mm LSZH compliant yes Signal transmission max. bandwidth 500 MHz General Color red Markings CE, WEEE Special feature Length indication on connector Operating temperature from -20 °C Operating temperature up to 65 °C Packaging type Bulk Dimensions / Weight Consumption Unit 1 pc. in polybag Downloads Product data sheet pdf Declaration of conformity pdf
