LAN tester - NF-488

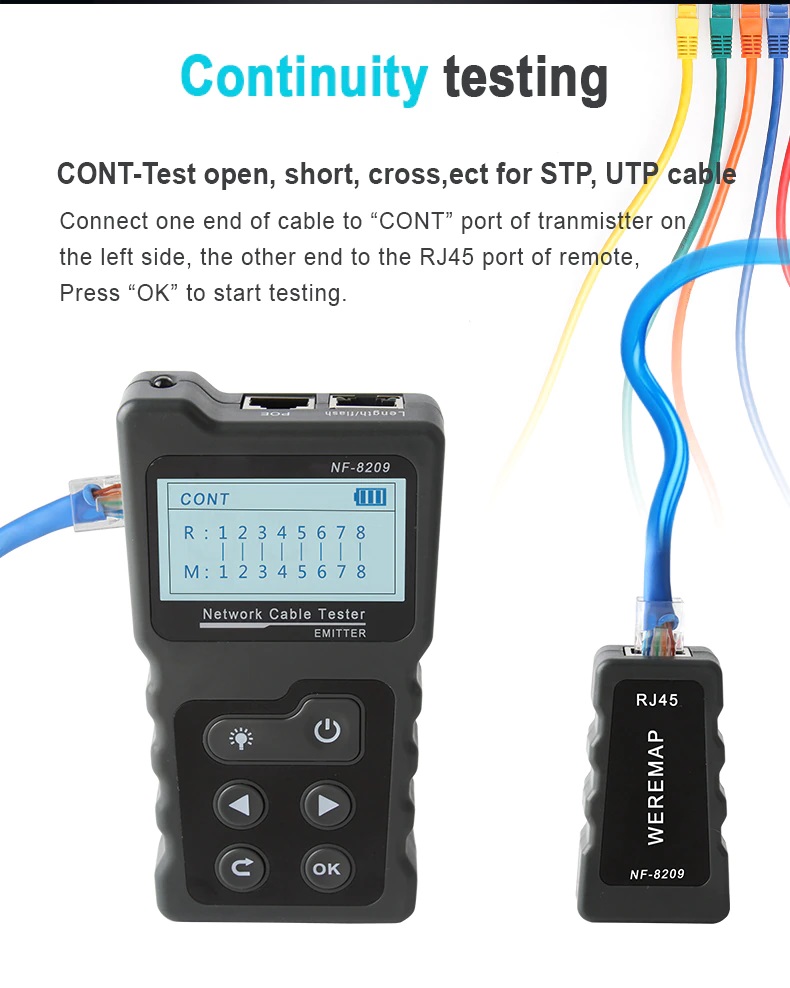

Lýsing Þessi verkfæri eru tilvalin fyrir þann sem að langar til að gera hlutina sjálfur. Network cable tester for testing CAT 5/6 network and ISDN connections Main features: Two scan modes selectable: AC filter & Non AC filter Detect AC voltage presence (50V-1000V). Test physical status for STP, UTP lan cable. Measure cable length accurately , the range is 200m. Hub blink for locating network port by the flashing port light on Hub / Switch. Available to 10M/100M/1000M Hub/ switch. PoE testing : identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard). PRODUCT OPERATION: CONT — Test open, short, cross,ect for STP, UTP cable. Length–measure length of lan cable, range is 2.5m~200m. Scan–Analog/Digital/ PoE mode to locate lan cables. PoE— available for standard or non-standard PoE switch (5~60V), identify AT or AF standard of PSE type. Flash–locate network port by the flashing port light on switch/ router. Rafhlöður fylgja ekki.
