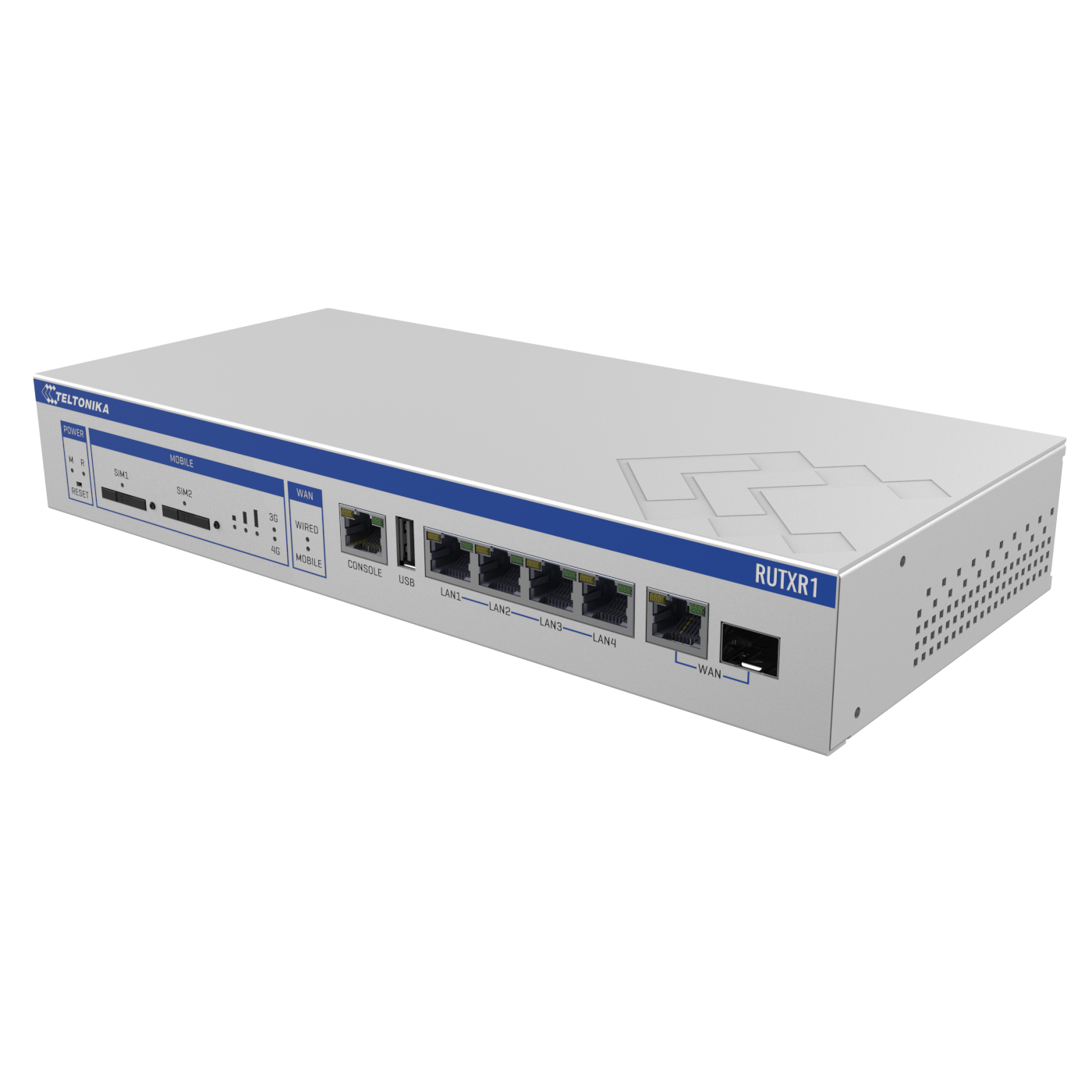

Teltonika Router - RUTXR1

Lýsing RUTX1R er öflugur 4G beinir fyrir 2 sim kort með Cat6 staðal fyrir gagnaflutning. Enterprise Rack-Mountable SFP/LTE Router 5 x Gigabit Ethernet ports. Dual SIM with auto failover, backup WAN and other switching scenarios SFP port for long-range Fiber-optic communication Compatible with Teltonika Remote Management System Wave-2 802.11ac Dual Band WIFI 4G LTE CAT 6 Cellular speeds up to 300Mbps with Carrier Aggregation Meira hér Wiki síða RUTX1R MOBILE Mobile module 4G (LTE) – Cat 6 up to 300 Mbps, 3G – up to 42 Mbps SIM switch 2 SIM cards, auto switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail Status Signal strength, SINR, RSRP, RSRQ, Bytes sent/received, connected band, carrier aggregation, IMSI, ICCID SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS auto replay USSD Supports sending and reading Unstructured Supplementary Service Data messages Black/White list Operator black/white list Multiple PDN Possibility to use different PDNs for multiple network access and services Band management Band lock, Used band status display APN Auto APN Bridge mode Direct connection (bridge) between mobile ISP and device on LAN WIRELESS Wireless mode 802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA) WiFi security WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation ESSID ESSID stealth mode WiFi users up to 150 simultaneous connections Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, built in customizable landing page ETHERNET WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover Fiber 1 x SFP port (cannot work simultaneously with Ethernet WAN port) LAN 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover CONSOLE Console RS-232 (RJ45) console port for router configuration and debuging NETWORK Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP) Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake on LAN (WOL), DLNA VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection Firewall Port forwards, traffic rules, custom rules DHCP Static and dynamic IP allocation, DHCP Relay, Relayd QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e DDNS Supported >25 service providers, others can be configured manually Network backup VRRP, Mobile, Wired, Fiber and WiFi WAN options, each of which can be used as an automatic Failover Load balancing Balance Internet traffic over multiple WAN connections SSHFS Possibility to mount remote file system via SSH protocol SECURITY Authentication Pre-shared key, digital certificates, X.509 certificates Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN Port and tag based VLAN separation Mobile quota control Custom data limits for both SIM cards WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter VPN OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC IPsec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256) GRE GRE tunnel PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3 support Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code DMVPN Method of building scalable IPsec VPNs SSTP SSTP client instance support Zerotier Zerotier VPN client support WireGuard WireGuard VPN client and server support MODBUS MODBUS TCP SLAVE ID filtering Respond to one ID in range [1;255] or any Allow remote access Allow access through WAN Custom registers Modbus TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend Modbus TCP slave functionality MODBUS TCP MASTER Supported functions 01, 02, 03, 04, 05, 06, 15, 16 Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC) MODBUS RTU MASTER (RS232) Supported baud rates From 300 to 115200 Supported functions 01, 02, 03, 04, 05 (only for alarms), 06 (only for alarms), 15 (only for alarms), 16 (only for alarms) Number of data bits From 5 to 8 Number of stop bits 1 or 2 Parity None, Even, Odd Flow None, RTS/CTS, Xon/Xoff MQTT GATEWAY Gateway Allows sending commands and receiving data from Modbus Master trough MQTT broker DNP3 Supported modes TCP Master, DNP3 Outstation DATA TO SERVER Protocols HTTP(S), MQTT, Azure MQTT, Kinesis MONITORING & MANAGEMENT WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log FOTA Firmware update from server, automatic notification SSH SSH (v1, v2) SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET Call Reboot, Status, Mobile data on/off, Output on/off TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem MQTT MQTT Broker, MQTT publisher SNMP SNMP (v1, v2, v3), SNMP Trap JSON-RPC Management API over HTTP/HTTPS Modbus Modbus TCP status/control RMS Teltonika Remote Management Systems (RMS) IoT PLATFORMS Clouds of things Allows monitoring of: Device data, Mobile data, Network info, Availability ThingWorx Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP Azure IoT Hub Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server SYSTEM CHARACTERISTICS CPU Quad-core ARM Cortex A7, 717 MHz RAM 256 MB, DDR3 FLASH storage 256 MB, SPI Flash FIRMWARE/CONFIGURATION WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup FOTA Update FW/configuration from server RMS Update FW/configuration for multiple devices at once Keep settings Update FW without losing current configuration FIRMWARE CUSTOMIZATION Operating system RutOS (OpenWrt based Linux OS) Supported languages Busybox shell, Lua, C, C Development tools SDK package with build environment provided SERIAL RS232 RJ45 connector, full RS232 (with RTS, CTS) Serial functions Console (active by default), Modbus gateway, Modbus RTU master, Serial OverIP, Modem mode (Full or partial), Ntrip client USB Data rate USB 2.0 Applications Samba share, USB-to-serial External devices Possibility to connect external HDD, flash drive, additional modem, printer Storage formats FAT, FAT32, NTFS POWER Connector 2 x 4 pin industrial DC power sockets for main and redundancy power sources Input voltage range 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection Power consumption idle: <3W, max: 18W PHYSICAL INTERFACES Ethernet 5 x RJ45 ports, 10/100/1000 Mbps Console 1 x RJ45, RS232 communication Fiber 1 x SFP port Status LEDs 2 x WAN type, 2 x Mobile connection type, 3 x Mobile signal strength, 2 x active SIM, 10 x Ethernet status, 2 x Console status, 2 x Power SIM 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, external SIM holders Power 2 x 4 pin DC connector Antennas 2 x SMA for LTE, 2 x RP-SMA for WiFi USB 1 x USB A port for external devices Reset Reboot/User default reset/Factory reset button Other 1 x Grounding screw, 1 x lock PHYSICAL SPECIFICATION Casing material Full steel housing Dimensions (W x H x D) 272 x 42.6 x 122.6 mm Weight 1050 g Mounting options Rack mounting, flat surface placement OPERATING ENVIRONMENT Operating temperature -40°C to 75°C Operating humidity 10 % to 90 % non-condensing
