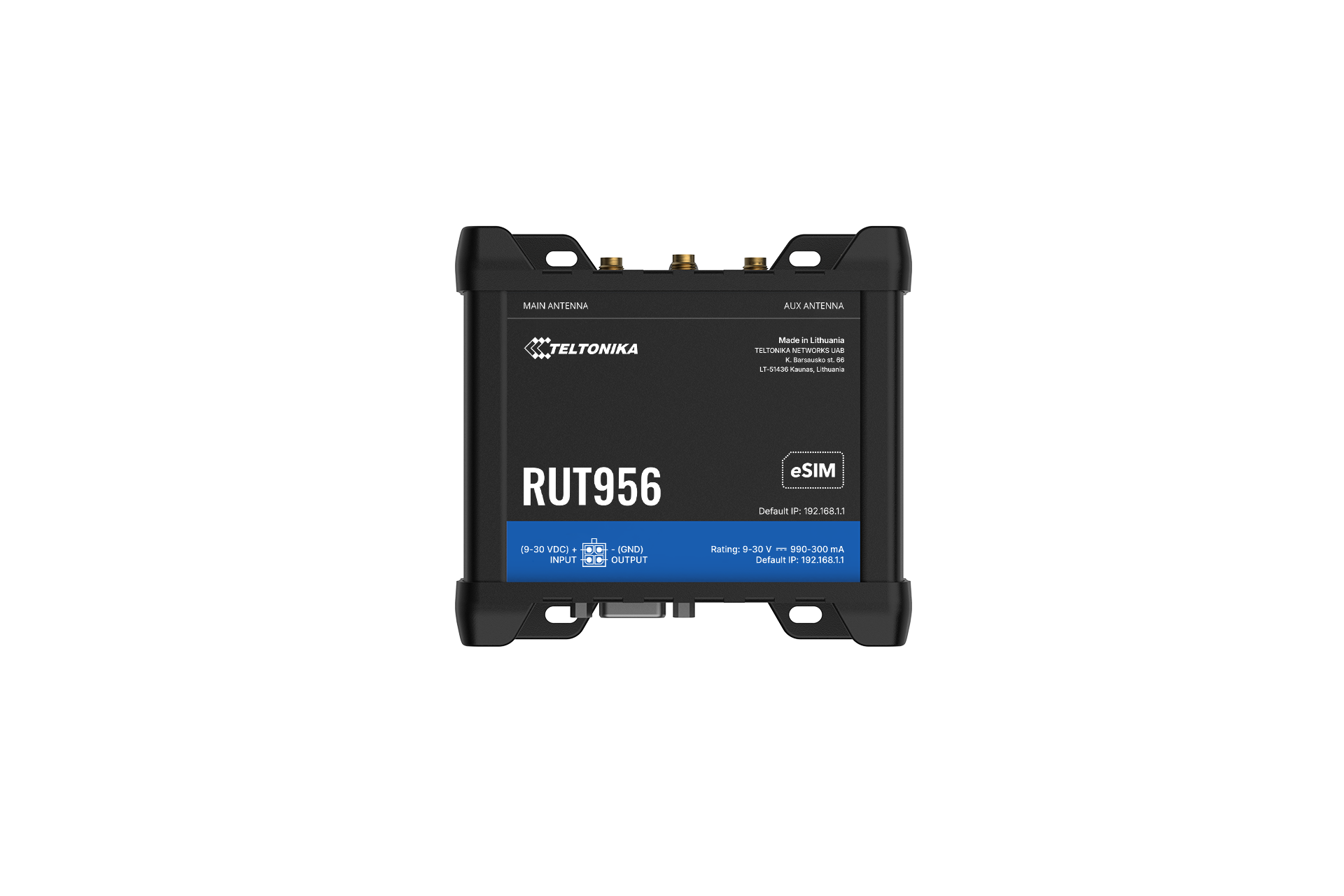

Teltonika Router LTE Cat4 eSim - RUT95643000 Global

Lýsing Beinir frá Teltonika. Þessi er með eSim og góður þar sem að reynir á. RUT956430000 er hægt að treysta á þegar á reynir. Hann er öruggur LTE router fyrir aðstæður sem að þarf að hafa örugga tengingu. Hann tengið þig með öryggi við netið þar sem að 4G er fyrir hendi en ekki er möguleiki á ljósleiðara eða öðrum tengingum. RUT956 er með möguleika á 2 SIM kortum og eSim. Tenging fyrir loftnet er til þess að hafa loftnet úti til að fá betra samband við sendinn. Hann er líka með GPS til að sýna hvar hann er staddur. Þessi er með B28. 4G (LTE-FDD): B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28 4G (LTE-TDD): B38, B39, B40, B41 3G: B1, B2, B4, B5, B6, B8, B19 2G: B2, B3, B5, B8 Notendaleiðbeiningar hér RUT955 Allt um  RUT955 Teltonika bæklingur hér MOBILE Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps eSIM Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans SIM switch Dual SIM and eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP USSD Supports sending and reading Unstructured Supplementary Service Data messages Black/White list Operator black/white list Multiple PDN Possibility to use different PDNs for multiple network access and services Band management Band lock, Used band status display APN Auto APN Bridge Direct connection (bridge) between mobile ISP and device on LAN Passthrough Router assigns its mobile WAN IP address to another device on LAN WIRELESS Wireless mode IEEE 802.11b/g/n, Access Point (AP), Station (STA) WiFi security WPA2-Enterprise – PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation SSID/ESSID SSID stealth mode and access control based on MAC address WiFi users Up to 100 simultaneous connections Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, built in customizable landing page ETHERNET WAN 1 x WAN port  10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX LAN 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX NETWORK Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP) Network protocols  TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection Firewall Port forward, traffic rules, custom rules DHCP Static and dynamic IP allocation, DHCP Relay, Relayd QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e DDNS Supported >25 service providers, others can be configured manually Network backup WiFi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover Load balancing Balance Internet traffic over multiple WAN connections Hotspot Internal/external Radius server, captive portal, built in customizable landing page SSHFS Possibility to mount remote file system via SSH protocol SECURITY Authentication Pre-shared key, digital certificates, X.509 certificates Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN Port and tag based VLAN separation Mobile quota control Custom data limits for both SIM cards WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only Access controlFlexible access control of TCP, UDP, ICMP packets, MAC address filter VPN OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC IPsec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256) GRE GRE tunnel PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3 support Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code DMVPN Method of building scalable IPsec VPNs SSTP SSTP client instance support ZeroTier ZeroTier VPN client support WireGuard WireGuard VPN client and server support MODBUS TCP SLAVE ID range Respond to one ID in range [1;255] or any Allow Remote Access Allow access through WAN Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality MODBUS TCP MASTER Supported functions 01, 02, 03, 04, 05, 06, 15, 16 Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC) MODBUS RTU MASTER (RS232) Supported baud rates From 300 to 115200 Supported functions 01, 02, 03, 04, 05, 06, 15, 16 Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII Number of data bits From 5 to 8 Number of stop bits 1 or 2 Parity None, Even, Odd Flow None, RTS/CTS, Xon/Xoff Duplex Full duplex MODBUS RTU MASTER (RS485) Supported baud rates From 300 to 115200 Supported functions 01, 02, 03, 04, 05, 06, 15, 16 Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII Number of data bits 8 Number of stop bits 1 Parity None, Even, Odd Flow None, Xon/Xoff Duplex Half duplex MODBUS DATA TO SERVER Protocol HTTP(S), MQTT, Azure MQTT MQTT GATEWAY MQTT Gateway Allows sending commands and receiving data from MODBUS Master through MQTT broker DNP3 Supported modes TCP Master, DNP3 Outstation, RTU Master MONITORING & MANAGEMENT WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log FOTA Firmware update from server, automatic notification SSH SSH (v1, v2) SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, WiFi on/off TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem MQTT MQTT Broker, MQTT publisher SNMP SNMP (v1, v2, v3), SNMP Trap JSON-RPC Management API over HTTP/HTTPS MODBUS MODBUS TCP status/control RMS Teltonika Remote Management System (RMS) IOT PLATFORMS Cloud of Things Allows monitoring of: Device data, Mobile data, Network info, Availability ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength Azure IoT Hub Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type SYSTEM CHARACTERISTICS CPU Mediatek MIPS 24Kc 580 MHz RAM 128 MB, DDR2 FLASH storage 16 MB, SPI Flash FIRMWARE / CONFIGURATION WEB UI  Update FW from file, check FW on server, configuration profiles, configuration backup, restore point FOTA Update FW RMS Update FW/configuration for multiple devices at once Keep settings Update FW without losing current configuration FIRMWARE CUSTOMIZATION Operating system RutOS (OpenWrt based Linux OS) Supported languages Busybox shell, Lua, C, C Development tools SDK package with build environment provided LOCATION TRACKING GNSS GPS, GLONASS, BeiDou, Galileo and QZSS Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS NMEA NMEA 0183 NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol) Server software Supported server software TAVL, RMS Geofencing  Configurable multiple geofence zones SERIAL RS232 DB9 connector, full RS232 (with RTS, CTS) RS485  RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate Serial functions  Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client USB Data rate  USB 2.0 Applications  Samba share, USB-to-serial External devices Possibility to connect external HDD, flash drive, additional modem, printer Storage formats  FAT, FAT32, NTFS INPUT / OUTPUT Input  1 x digital dry input (0 – 3 V), 1 x digital galvanically isolated input (0 – 30 V), 1 x analog input (0 – 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 – 5 V detected as logic low, 8 – 30 V detected as logic high) Output 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector) Events Email, RMS, SMS I/O juggler  Allows to set certain I/O conditions to initiate event POWER Connector 4-pin industrial DC power socket Input voltage range 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards Power consumption  < 2 W idle, < 7 W Max PHYSICAL INTERFACES (PORTS, LEDS, BUTTONS, SIM) Ethernet 4 x RJ45 ports, 10/100 Mbps I/O’s 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector (available from HW revision 1600) Status LEDs 1 x bi-color connection status LED, 5 x connection strength LEDs, 4 x LAN status LEDs, 1 x Power LED SIM 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional) Power 1 x 4-pin power connector Input/output 1x 10 pin industrial socket for inputs/outputs Antennas 2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x SMA for GNSS USB  1 x USB A port for external devices, 1 x USB A port for external devices RS232 1 x DB9 socket RS485 1 x 6-pin industrial socket Reset Reboot/User default reset/Factory reset button PHYSICAL SPECIFICATION Casing material Aluminium housing, plastic panels Dimensions (W x H x D) 110 x 50 x 100 mm Weight 287 g Mounting options DIN rail (can be mounted on two sides), flat surface placement OPERATING ENVIRONMENT Operating temperature -40 °C to 75 °C Operating humidity 10% to 90% non-condensing Ingress Protection Rating IP30 REGULATORY & TYPE APPROVALS Regulatory CE/RED, UKCA, CB EMI IMMUNITY Standards  EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, Draft EN 301 489-19 V2.2.0, Final draft EN 301 489-52 V1.2.0, EN 55032:2015 A1:2020, EN 55035:2017 A11:2020, EN 61000-3-3:2013 A1:2019, EN IEC 61000-3-2:2019 ESD  EN 61000-4-2:2009 RS EN 61000-4-3:2020 EFT EN 61000-4-4:2012 Surge immunity (AC Power Line) EN 61000-4-5:2014 A1:2017 CS EN 61000-4-6:2009 DIP EN IEC 61000-4-11:2020 PERFORMANCE SPECIFICATIONS Standards EN 300 328 V2.2.2, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1, EN 303 413 V1.1.1 SAFETY Standards EN IEC 62311:2020, AS/NZS 60950.1:2015, EC 62368-1:2018, EN IEC 62368-1:2020 A11:2020
