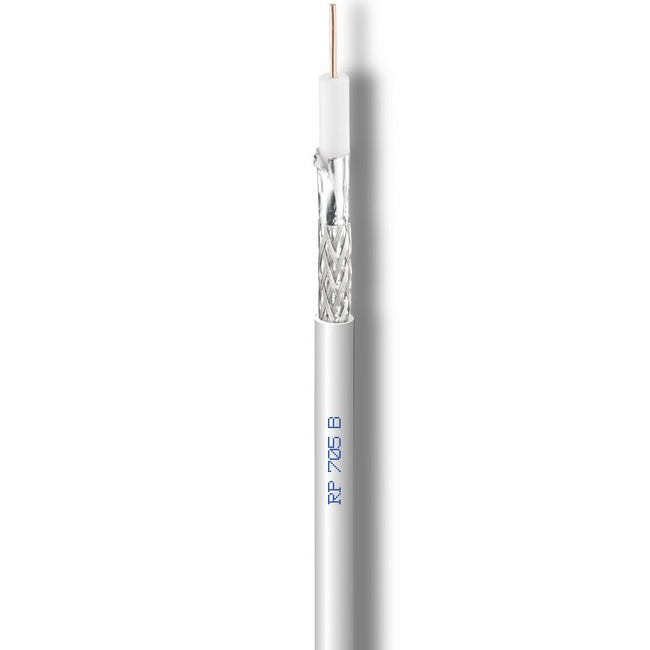

Kóax kapall - 6,8mm RP705B

Lýsing Cavel er kapalframleiðandi á Ítalíu sem að framleiðir aðeins hágæða kapla. Við bjóðum hér helstu gerðir af kapli frá þeim. Hann fæst á 100 og 500 metra rúllum. Seljum hann í metravís hér. Nánari upplýsingar hér acc. to Standard EN 50117-2-4 Fire-Resistance Rating IEC 60332-1 CONSTRUCTION DATA Inner Conductor Ø mm 1,13 material Cu Dielectric Ø mm 4,75 material PEG Film Foil Laminate material AP Braid material Al Braid Optical Coverage % 43 Diameter over Braid Ø mm 5,16 Outer Sheath Ø mm 6,8 material PVC PHYSICAL DATA Copper Content kg/km 8,9 Cable Weight kg/km 37,7 Min bending radius x 1/n mm 35/70 Max.Tensile Strength N 150 Fire Load MJ/km 651 kWh/km 181 ELECTRICAL DATA Impedance Ohm 75±3@200 MHz Capacitance (@1kHz) pF/m 52 ± 2 Velocity Ratio % 85 Attenuation (at 20°C ) at 5 MHz dB/100m 1,5 at 10 MHz dB/100m 2,0 at 30 MHz dB/100m 3,1 at 50 MHz dB/100m 4,0 at 200 MHz dB/100m 8,1 at 300 MHz dB/100m 10,0 at 470 MHz dB/100m 12,5 at 800 MHz dB/100m 16,6 at 1000 MHz dB/100m 18,7 at 1750 MHz dB/100m 25,3 at 2150 MHz dB/100m 28,9 at 2400 MHz dB/100m 30,1 at 3000 MHz dB/100m 35,0 Structural return loss (SRL) at 5 – 470 MHz dB >30 at 470 – 1000 MHz dB >28 at 1000 – 2000 MHz dB >26 at 2000 – 3000 MHz dB >22 Shield Transfer Impedance (Zt) Class B 5 – 30 MHz mOhm/m < 14 Screening Attenuation (SA) Class A at 30 – 1000 MHz dB >95 at 1000 – 2000 MHz dB >90 at 2000 – 3000 MHz dB >80 DC Conductor Resistance inner/outer Ohm/km 18,0 / 22,0 Loop resistance Ohm/km 40,0 Sheat Insulation voltage (spark test) kV 3,0 Maximum current (Ieff) A 8
